Model Details

EHLTG-5270-4-48

EHLTG-5270-4-48

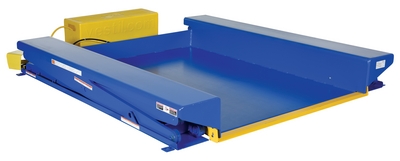

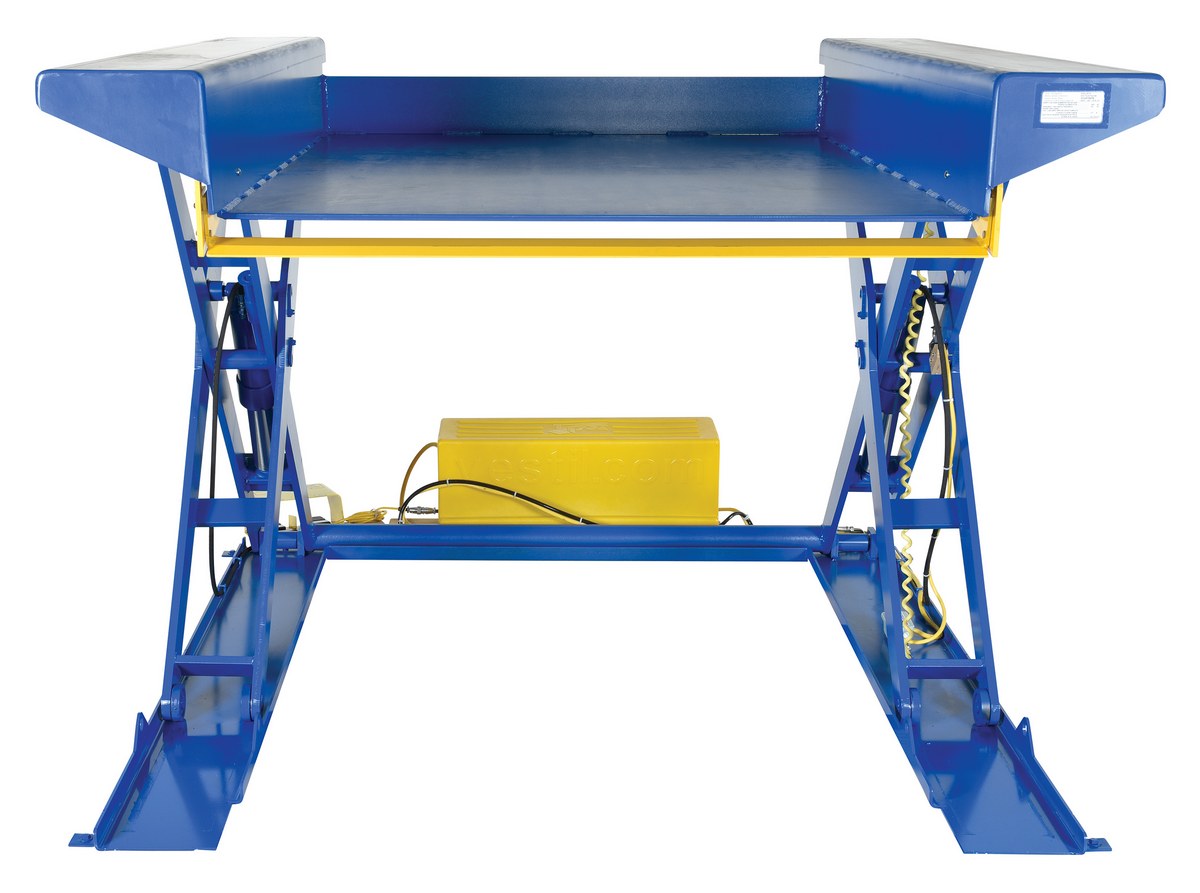

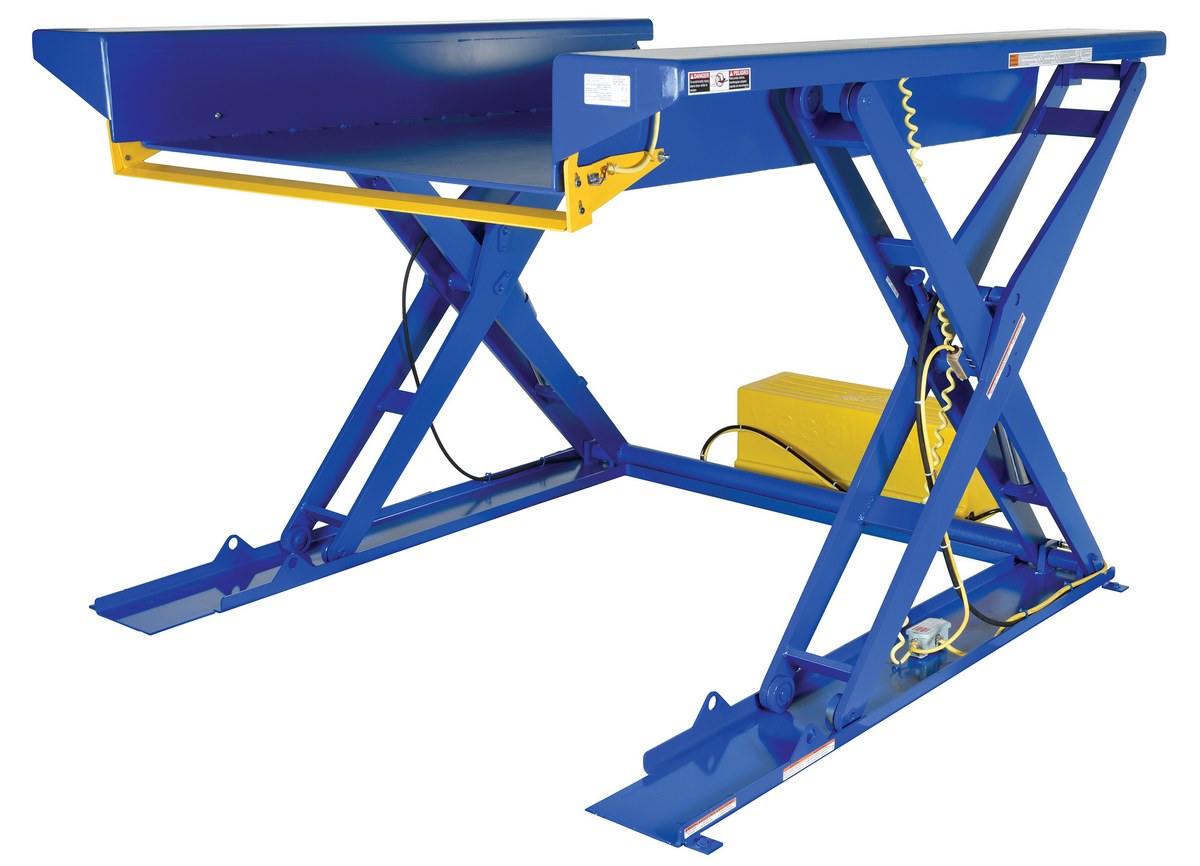

Steel Ground Lift Scissor Table 52 In. x 70 In. 4000 Lb. Capacity Blue

The ground lift scissor table is designed for use when fork trucks are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed standard with additional voltage options available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features entry-side electric toe guard to protect pinch points
  • Includes velocity fuse to maintain platform height
  • Remote power unit can be located up to eight feet away from the table
Total Ship Wt.(lbs.): 2348 (only 1 package) Size: 75.0625"W x 78"L x 10.4375"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 4000 Usable Platform Width (in.): 52 Usable Platform Length (in.): 73
Raised Height (in.): 48 Platform Lowered Height (in.): 1/2 Hydraulic Component Rating (psi): 3000
Motor Horsepower: 2 Hertz: 60 Voltage: 460
Phase: 3 Remote Power Unit Length (in.): 32-1/2 Remote Power Unit Width (in.): 12
Remote Power Unit Height (in.): 12-1/2 Overall Width (in.): 78 Overall Width (in.): 75-1/16
Back Plate Height (in.): 6

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: EHLTG-5270-4-48


EHLTG-5270-4-48

Steel Ground Lift Scissor Table 52 In. x 70 In. 4000 Lb. Capacity Blue

The ground lift scissor table is designed for use when fork trucks are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. Safety features include an entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed standard with additional voltage options available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features entry-side electric toe guard to protect pinch points
  • Includes velocity fuse to maintain platform height
  • Remote power unit can be located up to eight feet away from the table
Dimensions: 75.0625"W x 78"L x 10.4375"H Sell UOM: EA-Each Color: Blue
Material: Steel UPC: 691215017855 GTIN: 00691215017855
Warranty: -- Shipping Weight: 2348 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: United States
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? Y
Uniform Capacity (lb.): 4000 Usable Platform Width (in.): 52 Usable Platform Length (in.): 73
Raised Height (in.): 48 Platform Lowered Height (in.): 1/2 Hydraulic Component Rating (psi): 3000
Motor Horsepower: 2 Hertz: 60 Voltage: 460
Phase: 3 Remote Power Unit Length (in.): 32-1/2 Remote Power Unit Width (in.): 12
Remote Power Unit Height (in.): 12-1/2 Overall Width (in.): 78 Overall Width (in.): 75-1/16
Back Plate Height (in.): 6
